Milli ohm meter now working .. !

 Gosh darn it, it seems to function quite well.

Milli ohm meter getting warmer ...

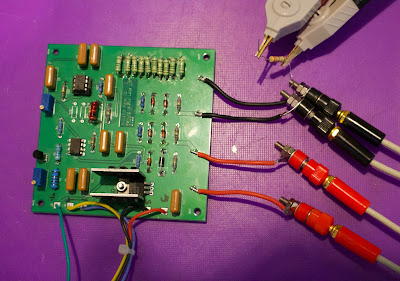

So the aforementioned PCB arrived back, have assembled.

I had to play with resistor values and so on,  but now I have a circuit that will pump 500mA through the device under test. There is a x100 amplifier which boosts up the voltage developed across the DUT to a suitable voltage for an Arduino 10 bit ADC to convert.

So, a 100milli ohm resistor will develop a full scale reading. I'm going to have to add a range switch to lower the current if I want to measure bigger resistors than that. But then we have multimeters that can go down to a few hundred milli ohms in general.

In general, quite pleased so far. I am going to assemble this into a bench power supply which happens to have one of my old boards that can read switches, write data to a flourescent display (which is only 30 years old). I am also going to float the power supply ground so we don't liberate magic smoke from things when I am using it.
